Straightening Machine Solution for Brass Rod 10-50mm
Option One (One Straightening machine covering 10-50mm brass rod)
Main technical parameters of w56-30 horizontal 10-roll hyperbolic straightening machine
1. Straightenable material specification: 10-50mm (brass rod)
2. Straightening speed: variable frequency adjustable
3. Number of active rolls: 3
4. Number of passive rolls: 7
5. Straightening roller material: 9Cr2MoV
6. Material curvature after straightening: ≤1mm/M
7. Motor model: Y180-4
8. Motor power: 11KW
9. Machine dimensions: 1800*1600*1200

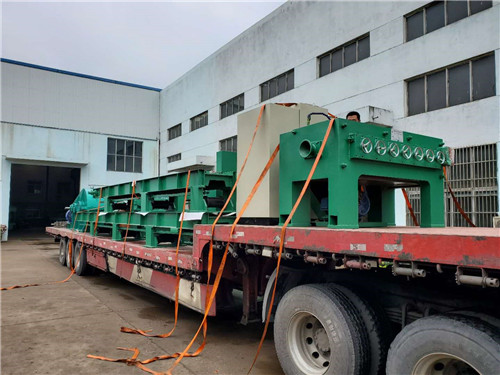

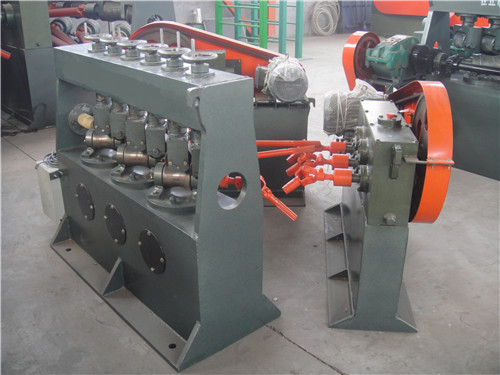

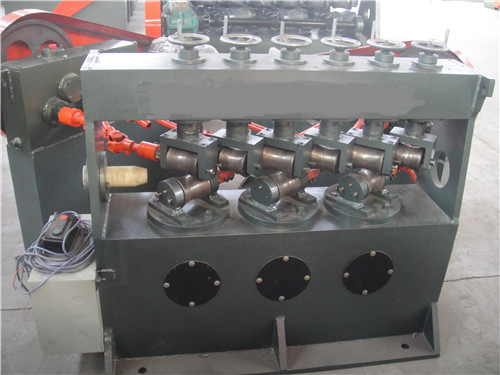

Machine Picture:
Option Two (Two Straightening machine covering 10-50mm brass rod) (suggested)
1. Straightenable material specification: 6-16mm (brass rod)
2. Straightening speed: variable frequency adjustable
3. Number of active rolls: 6
4. Number of passive rolls: 3
5. Straightening roller material: 9Cr2MoV
6. Material curvature after straightening: ≤0.2mm/M
7. Motor power: 1.5KW*2
8. Machine dimensions: 1400*500*1000 / 1pc; 1200*600*1100 / 2pcs
9. Machine Weight: 1.13T

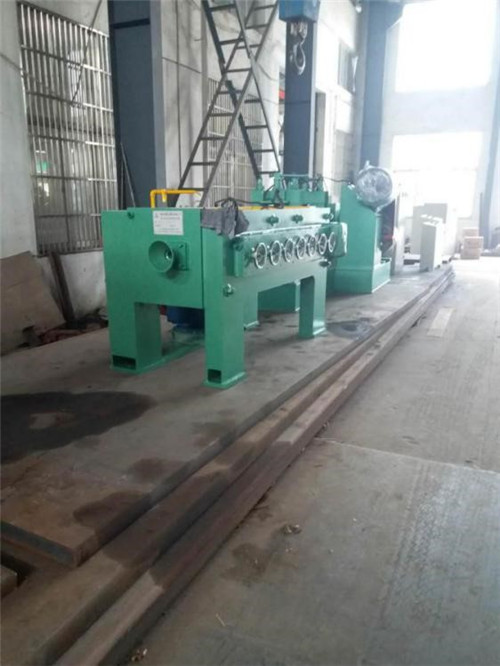

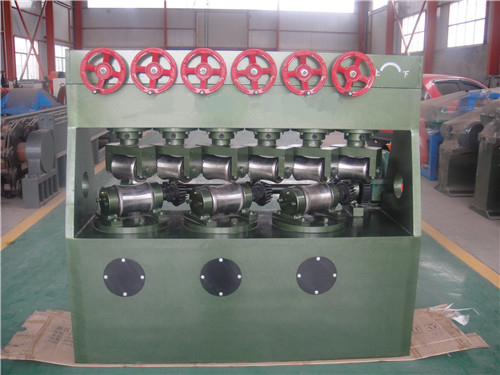

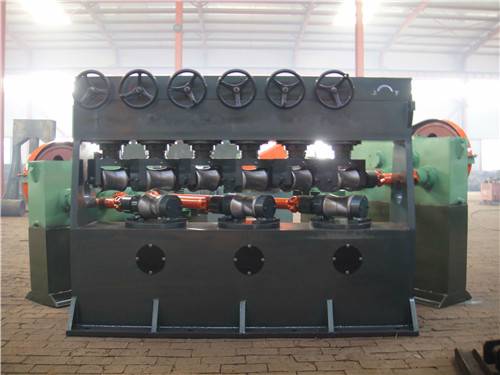

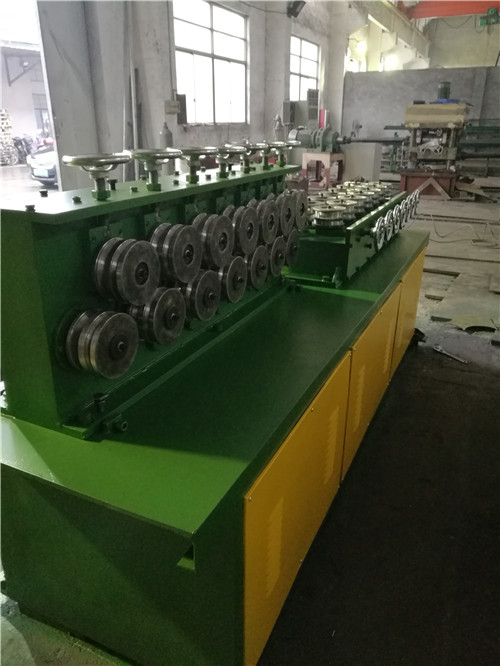

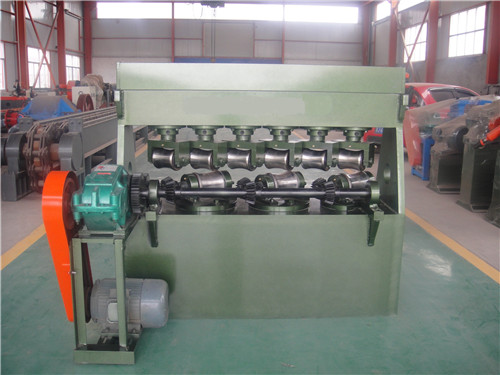

Machine Picture:
JZ-40 Nine roll single drive straightening machine : Price: 66000RMB
1. Straightenable material specification: 15-50mm (brass rod)
2. Straightening speed: variable frequency adjustable
3. Number of active rolls: 3
4. Number of passive rolls: 6
5. Straightening roller material: Cr12MoV
6. Material curvature after straightening: ≤0.2mm/M
7. Motor power: 7.5KW
8. Machine dimensions: 2100*1400*1600
9. Machine Weight: 2.6T

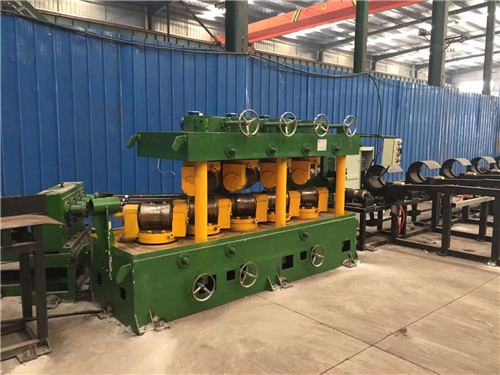

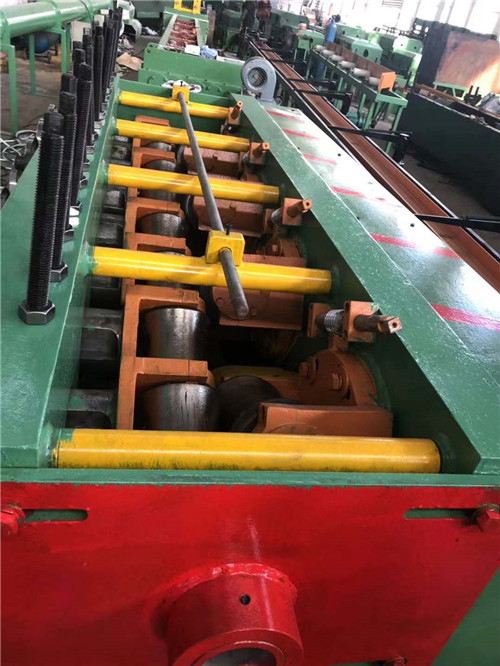

Machine picture:
